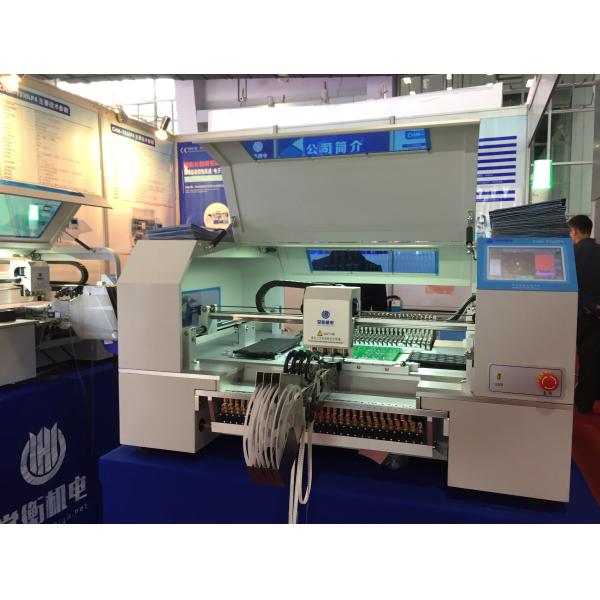

4 Heads 60 Feeders CHMT560P4 Advanced Desktop SMT pick and place
machine, work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm
Advanced Pick and Place Machine 110v 220V English Version CE Passed
Please find Video in Youtu link:
CHMT560P4 working video:
CHMT560P4 pick and place machine placing different kinds of IC:
This CHMT560P4 is an updated model from CHMT530P4 which has 60
feeders with 4 heads Juki Nozzle placement, more material supported
with high speed mounting, working with Yamaha pneumatic feeders 8mm 12mm 16mm 24mm, and also Yamaha vibration feeder accept by customer in market,
very table and convenient! This machine for small smt production is
your good helper!
The operation system is industry level embedded Linux system, the
main board of machine was researched by ourself, which is more
relaible than windows system, and life time is much longer.
CHMT560P4 using 502---508 different kinds of Juki nozzles, suitable
for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc,
which can meet more customers' demand.
Charmhigh CHM-T560P4 Technical Parameters
|XYZ Axis travel||600mm(X)×630mm(Y)×20mm(Z)|
|PCB max size||400mm(L)×270mm(W)|
|Support components||0201-0402-5050, SOP, QFN,BGA etc.|
- Without vision:8000cph
- With Vision:5500cph
|Placement head||4 heads|
Support max 30pcs 8mm Pneumatic feeder (other options:
- 14pcs general IC stack
- Support IC tray
|Vision detection||Double camera (up & down) support max size of IC:22*22mm|
- XY Axis stepper motor with encoder closed-loop control
- Flexible S deceleration
- Z Axis reset detection
|Components leakage detection||Vacuum and visual detection|
|Main board||High-reliability industry motherboard|
|Touch Screen||7 inches industry screen, externel mouse control supported|
|Operation system||Embedded Linux system|
|External air source||0.5MPa|
|Power supply||AC220V 50Hz / AC110V 60Hz|
|Compantible software||Altium designer, Protell99SE, PADS, Kicad, Eagle, Cadint, Cadence
Orcad, Cadence Allegro, PROTEUS…etc|
1. Convenient software, Embedded Linux System of the machine, industry system, more professional and stable,
independent operation, no need external computer, operation more
easy and convenient.
2. Industry full touch screen operation, no need external screen,
room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two cameras CCD system correct the position of each components very accurate,especially for IC.
4. It has flexible PCB clamping fixture, and it has user-defined IC tray, convenient and quick.
5. The vision also can second correction machine origin point, make
sure origin point correct.
6. With two nozzles placing heads, high precise Juki Nozzles with magnet, no need to disassemble with wrench. 2 nozzles
arbitrary rotation angle -180 degree~ +180 degree. Placing height can adjustable.
7. Pull pin automatically return to avoid nozzles broken, pull pin not be stuck, big progress.
8. Z axis detection, placement head can auto back to origin to prevent nozzles broke.
9. Closed-loop contro, X,Y Axis with encoder, never loose steps.
7. PCB by calibrate two components position ---- first and last
componet, amend the offset of PCB.
8. Calibration can be rapidly and accurately for PCB, do not need
to care about offset, no need to calculate the input.
9. Comes iwth vacuum testing, with automatic feeding; if one
component suck crooked, it will automatically throw it to the feed
zone, then pick a new one to mount again.
10. If lack material it will automatic detection, machine will
alarm and stop; after supply material, then continue working, no
need to re-start.
11. Support any number of PCB batch.
12. If no PCB file, or don’t you don't have work file, you can
creat a new file to program in machine directly.
13. Support single step.
Why choose Charmhigh?
1.Professional desgin and room saved.
2.User friendly operation, no need professional SMT engineer,
3.One machine - Integrated operation, no need extra pump or PC or
any supporting facility
4.High accuracy and reliability,make up the defection of manual
5.Cost efficient, reduce expense to own a professional automatic
SMT production line
6.International express with door to door service,3-5 working days
7.Especial for laboratory research and development,samples,to avoid
any patents and designs revealment.
8.One machine equal to 5 soldering staff, easy manage and
cost-saved. Good for small batch production.
9.Charmhigh Is factory supply, all of our machines parts are
researched and manufacturing by ourselves. After-service spare
parts never stop.
10. Charmhigh is a professional manufacturer of SMT Pick and Place
machine since 2009. All the software are researched by ourselves.
Standard Accessories for CHMT560P4:
1) Pick and Place MachineCHMT560P4: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1
100% real pictures:
Total support 60pcs Yamaha pneumatic feeders:
IC tray supported:
4 heads placement with JUKI nozzles:
Yamaha pneumatic feeders:
Touch screen operation: (no need extermal screen or PC)
USB Mouse also supported:
CLOSED-LOOP MOTION CONTROL SYSTEM
It can be four-axis linkage, move faster and smoothly. Both nozzle
can working together, not single nozzle working any more. Support
single step. X,Y axis encoder installed, never lose step. Flexible
S accelerate and decelerate, make sure high speed placement working
The complete machine has a warranty period of 1 year from the time
of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical
advice service. Provide one to one after-sale service.
Each machine 100% test well before ship out.
