4 Heads Charmhigh Desktop Pick And Place Machine 30pcs Yamaha Pneumatic Feeders

Charmhigh Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

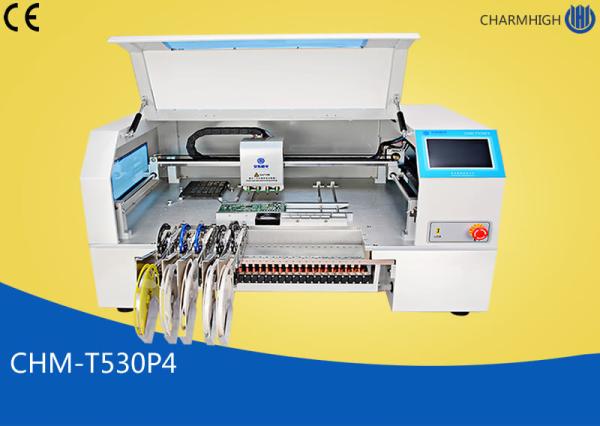

4 Heads Charmhigh Desktop Pick And Place Machine 30pcs Yamaha Pneumatic Feeders

Brand Name : Charmhigh
Model Number : CHM-T530P4
Certification : CE
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union
Delivery Time : 2-3 working days
Packaging Details : Wooden box
Heads : 4 heads
Nozzle : Juki Nozzle 4 types (503 504 505 506)
Feeder support quantity : 30pcs (take 8mm as example)
XYZ axis travel : 760*650*20mm
PCB area : 10*10mm~450*330mm
Control system : Industry Embedded Linux system
Need extermal PC or screen : NO NEED
Contact Now

4 Heads CHMT530P4 30pcs Yamaha pneumatic Feeders

Charmhigh Desktop Pick and Place Machine

work with Yamaha pneumatic feeder 8mm 12mm 16mm 24mm


Advanced Pick and Place Machine 110v 220V English Version CE Passed


Please find Video in Youtu link:


4 heads pick and place machine - Charmhigh CHMT530P4:

www.youtube.com/watch?v=2W3rWfMzPoU
Catalogue download from here: CHMT530P4.pdf

Description:

This CHMT530P4 is an updated model from CHMT530P which has 4 heads, mounting speed is faster, for small smt production is your good helper!
The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. CHMT530P4 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor,BGA...etc, which can meet more customers' demand.

Charmhigh CHM-T530P4 Technical Parameters


Parameters
ModelCHMT530P4
XYZ Axis travel650mm(X)×760mm(Y)×15mm(Z)
PCB max size450mm(L)×330mm(W)
Support components0201-0402-5050, SOP, QFN,BGA etc.
Mounting speed
  • Without vision:8000cph
  • With Vision:5500cph
Precision±0.015mm
Placement head4 heads
Feeding system

l Support max 30pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder)

  • 11pcs general IC stack
  • Support IC tray
Vision detectionDouble camera (up & down)
Motor control
  • XY Axis stepper motor with encoder closed-loop control
  • Flexible S deceleration
  • Z Axis reset detection
Components leakage detectionVacuum and visual detection
Main boardHigh-reliability industry motherboard
Touch Screen7 inches industry screen
Operation systemEmbedded Linux system
External air source0.5MPa
Power supplyAC220V 50Hz / AC110V 60Hz
Demension1050mm(L)×780mm(W)×500mm(H)
Compantible softwareAltium designer, Protell99SE, PADS, Kicad, Eagle, Cadint, Cadence Orcad, Cadence Allegro, PROTEUS…etc
Net weight125Kg

Competitive Advantage:


1. Convenient software, Embedded Linux System of the machine, industry system, more professional and stable, independent operation, no need external computer, operation more easy and convenient.
2. Industry full touch screen operation, no need external screen, room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two cameras CCD system correct the position of each components very accurate,especially for IC.
4. It has flexible PCB clamping fixture, and it has user-defined IC tray, convenient and quick.
5. The vision also can second correction machine origin point, make sure origin point correct.
6. With two nozzles placing heads, high precise Juki Nozzles with magnet, no need to disassemble with wrench. 2 nozzles arbitrary rotation angle -180 degree~ +180 degree. Placing height can adjustable.
7. Pull pin automatically return to avoid nozzles broken, pull pin not be stuck, big progress.
8. Z axis detection, placement head can auto back to origin to prevent nozzles broke.
9. Closed-loop contro, X,Y Axis with encoder, never loose steps.
7. PCB by calibrate two components position ---- first and last componet, amend the offset of PCB.
8. Calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
9. Comes iwth vacuum testing, with automatic feeding; if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
10. If lack material it will automatic detection, machine will alarm and stop; after supply material, then continue working, no need to re-start.
11. Support any number of PCB batch.
12. If no PCB file, or don’t you don't have work file, you can creat a new file to program in machine directly.

13. Support single step.


Why choose Charmhigh?

1.Professional desgin and room saved.
2.User friendly operation, no need professional SMT engineer, entry-level device
3.One machine - Integrated operation, no need extra pump or PC or any supporting facility
4.High accuracy and reliability,make up the defection of manual work
5.Cost efficient, reduce expense to own a professional automatic SMT production line
6.International express with door to door service,3-5 working days delivery
7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment.

8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.

9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.

10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.

Standard Accessories for CHMT530P4:

1) Pick and Place MachineCHMT530P4: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1


100% real pictures:



Total support 30pcs Yamaha pneumatic feeders:



IC tray supported:


4 heads placement with JUKI nozzles:



Yamaha vibration feeder:



Touch screen operation: (no need extermal screen or PC)



USB Mouse also supported:



CLOSED-LOOP MOTION CONTROL SYSTEM


It can be four-axis linkage, move faster and smoothly. Both nozzle can working together, not single nozzle working any more. Support single step. X,Y axis encoder installed, never lose step. Flexible S accelerate and decelerate, make sure high speed placement working perfect.



SAMPLES:




Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Each machine 100% test well before sent out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89 .
E-mail: kimi@charmhigh-tech.com

If you want to see more information and videos, please contact us by E-mail.
We will response you at the first time.
